Input voltage range: 100-240V to 50/60Hz
Power: 800W
Power socket: Power connector input

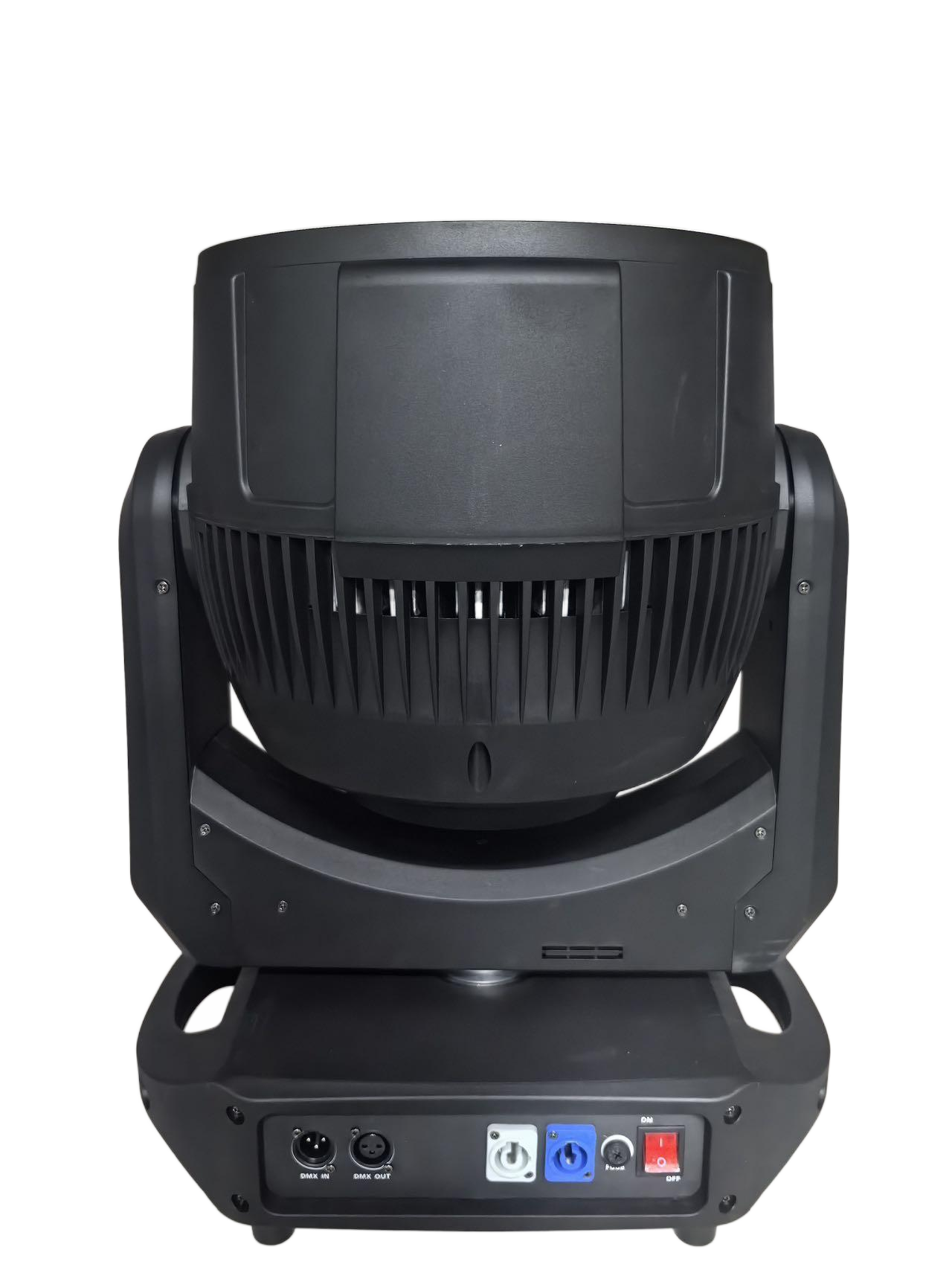

Signal input/output: Three-core XLR socket

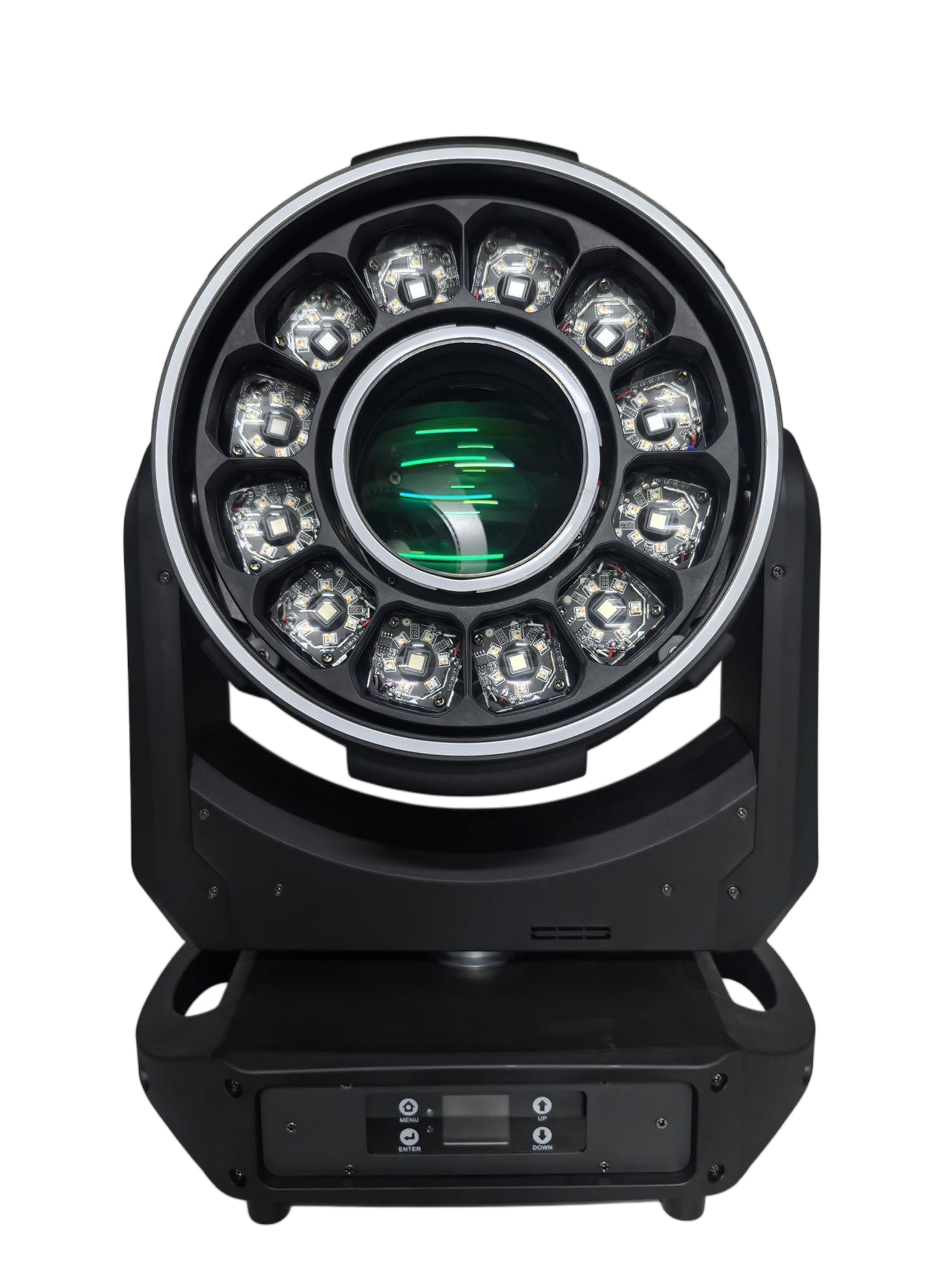

Light source :1 x 200W LED, 12 x 60W RGBW LED
Lamp color temperature: 7,000K (200W LED)
Luminous flux: 5,000 lm (200W LED)
The expected service life of LED: 20,000 hours
Optical system
Beam Angle: 3°(200W LED)
Zoom Angle: 4°-51° (40W RGBW LED)
Control and Program: 4 touch keys
Control panel: LCD display screen
Control modes: DMX512, RDM, Art-Net, sACN
DMX channel modes: 3 types
Control channels: 30 channels
Software upgrade: Update the software via DMX connection
Artificial Intelligence Internet of Things System: AIOT Fengyun System, "Yi • Data" Automatic Management System (Optional)
X-axis/Y-axis
X-axis rotation Angle: 540°
Y-axis rotation Angle: 215°
Automatic correction of X-axis/Y-axis position out-of-step
X-axis/Y-axis: 16-bit precision scanning
Pattern plate: 1 fixed pattern plate, 9 patterns + white circle
Color palette: 1 color palette, 13 fixed colors + white, with a rainbow effect
Prism: 1 8-prism, 1 honeycomb prism, which can be stacked and rotated in both directions
Atomization tablet: One atomization tablet
Other effects
Linear CTO color temperature adjustment: 2500K - 8000 K (40W RGBW LED)
Multiple speed stroboscopic effects
Electric focusing system
0-100% smooth dimming
Working environment
Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 65°C
Protection grade: IP20
Lamp body dimensions: 42.8*34.4*50.5cm
Outer packaging: 62*45*53cm
Net weight: 25.2kg
Gross weight: 27.95kg
Number of boxes packed: 1
