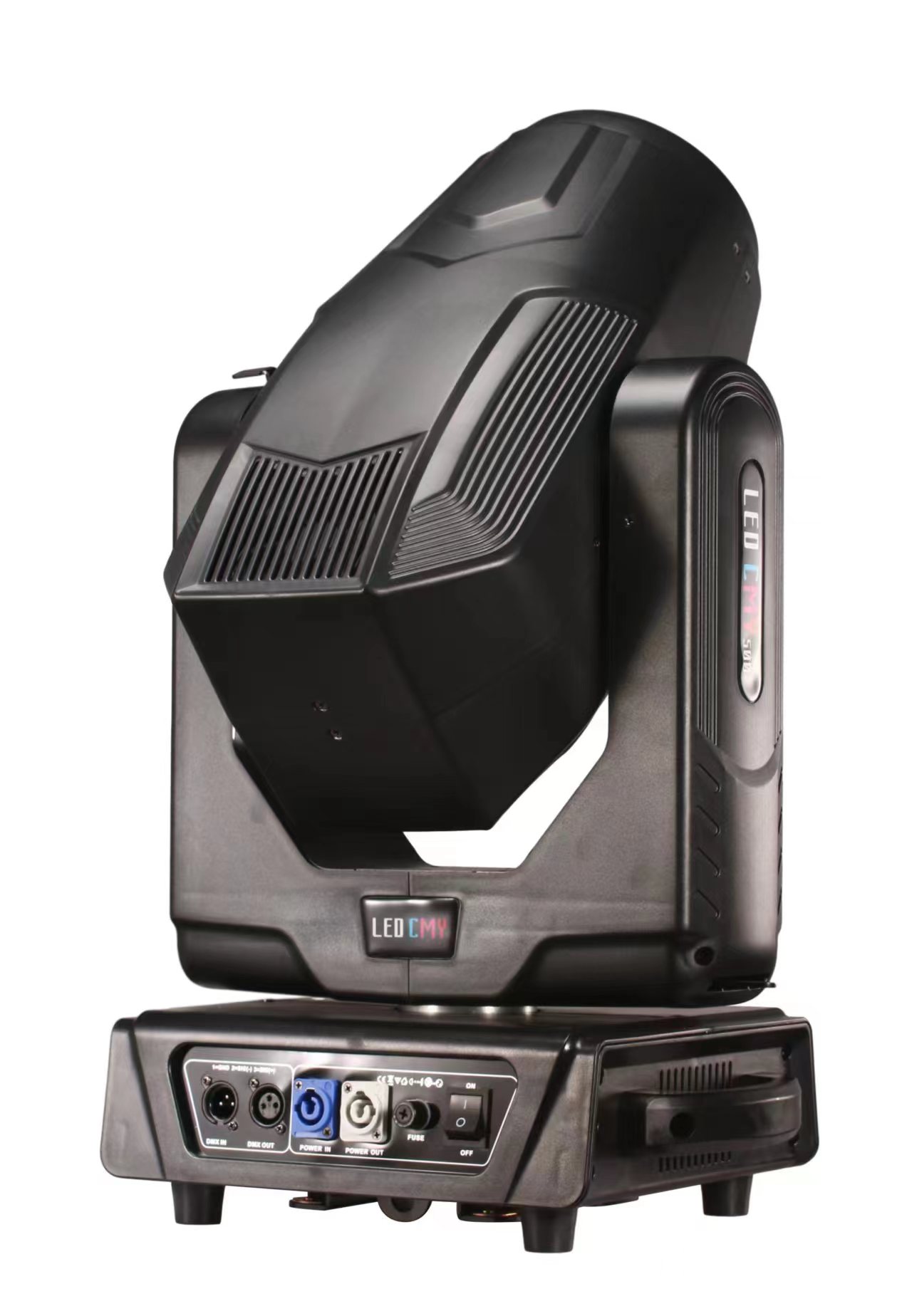

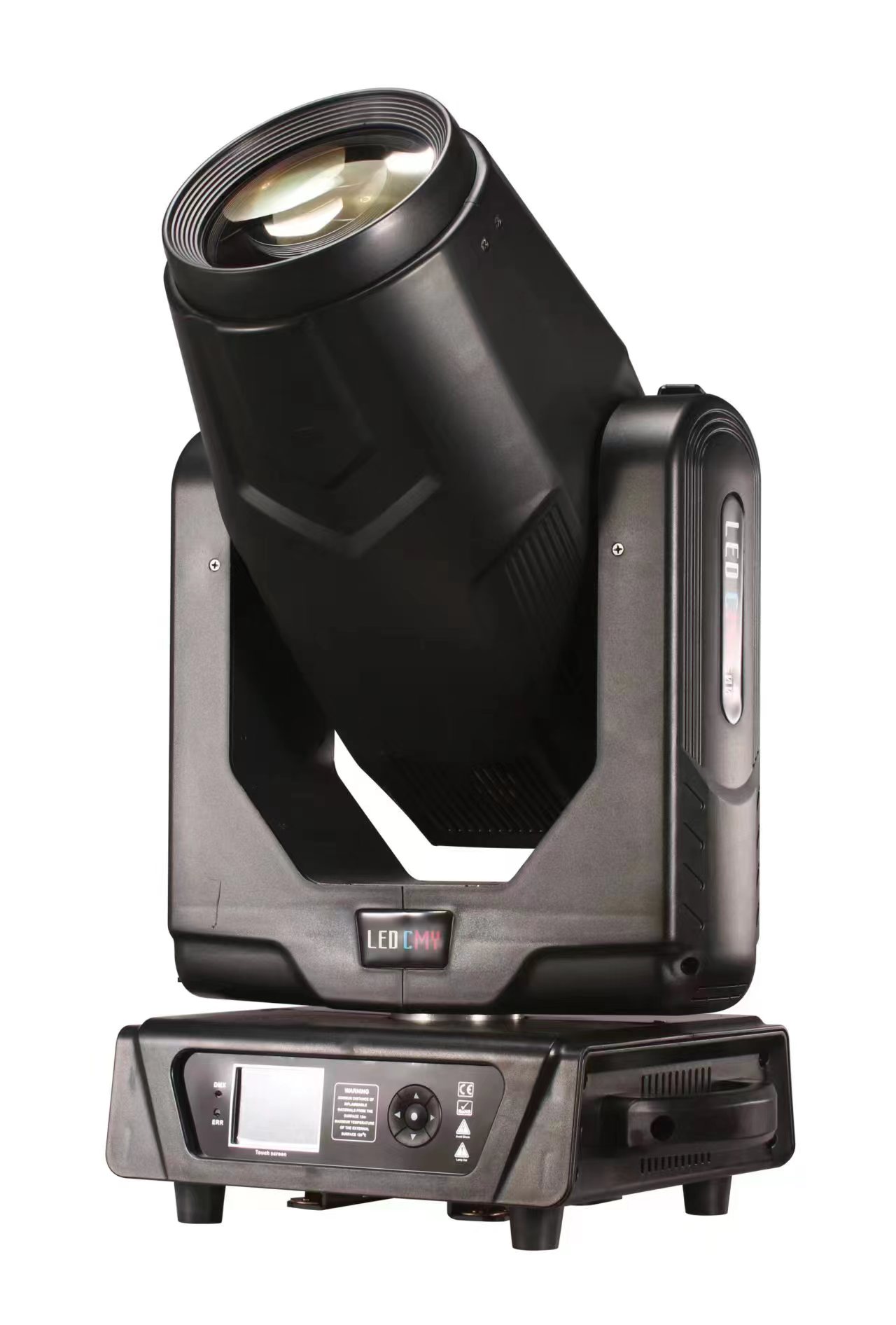

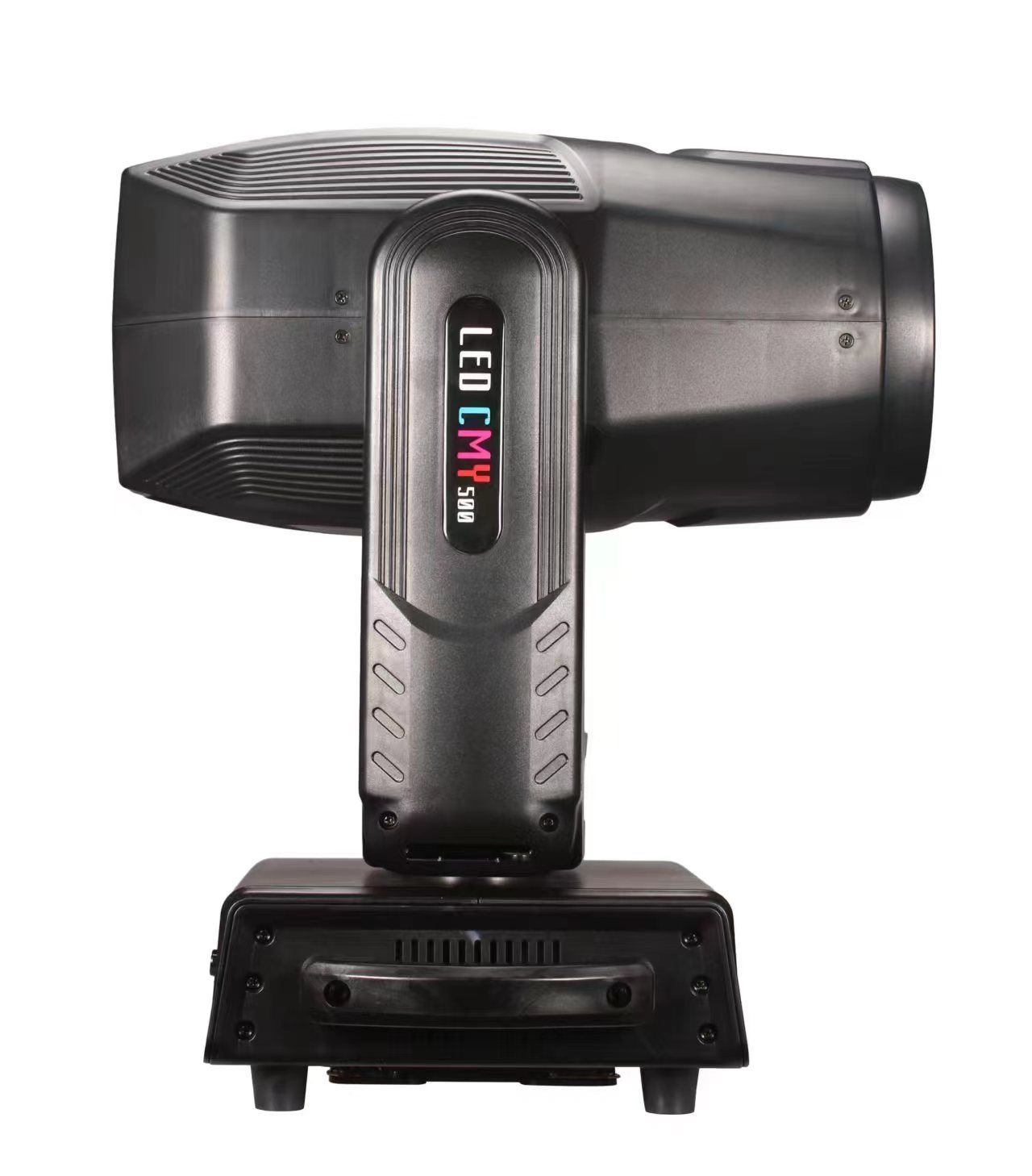

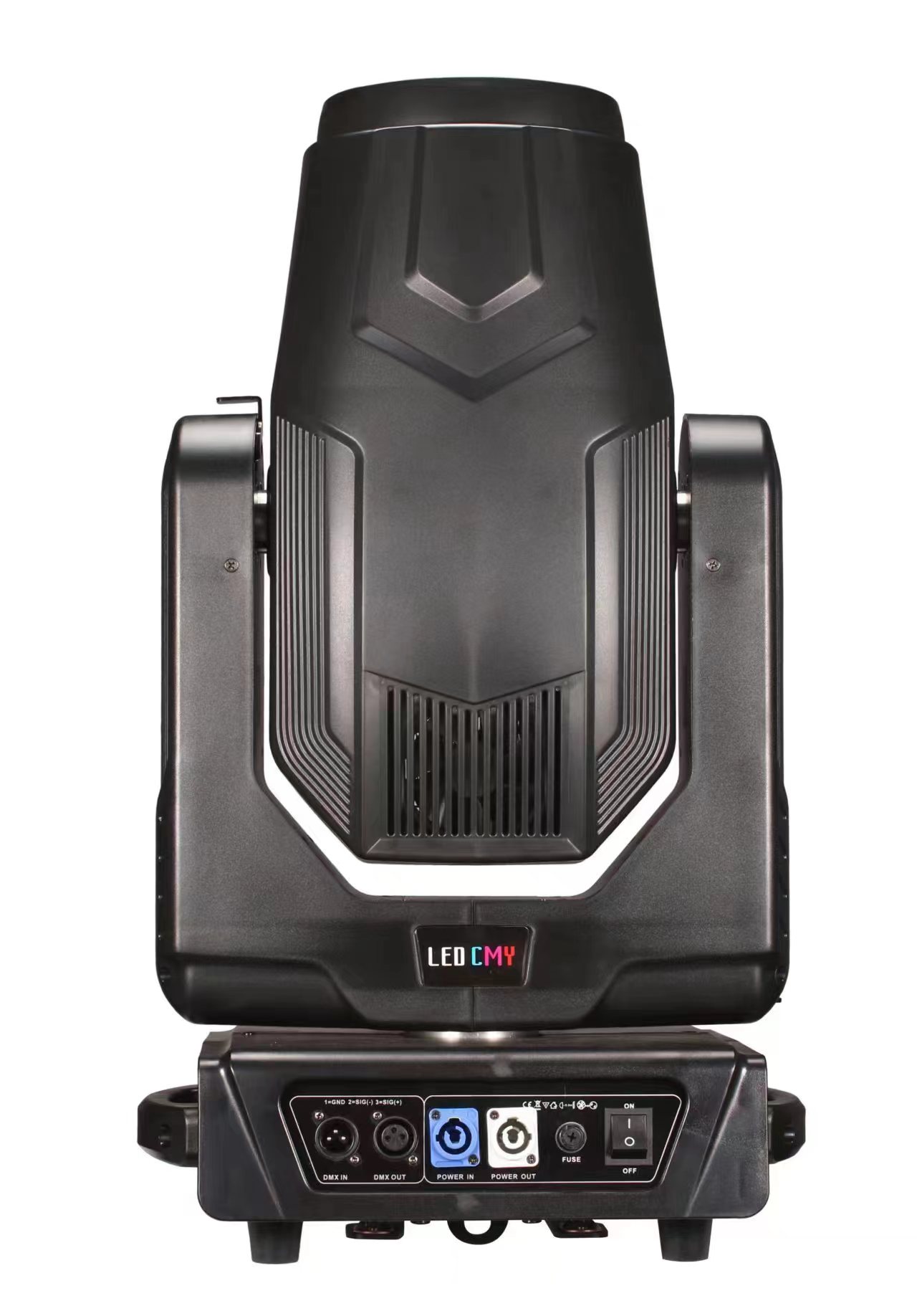

ALS-BWS500LED

Color temperature: 7500K color rendering index: 75

Input voltage :AC90V-240V/50-60HZ

Light source specification: ECO500-80-R00-000

Light source lifespan: 20,000 hours

Lumen illuminance: 120,000 lm at 4 meters

Light output aperture: 138MM

Rated power :600W

Channel mode :22/27 channels

Horizontal scanning :540 degrees (16-bit precision scanning) with electronic error correction

Vertical scanning: 270-degree (16-bit precision scanning) electronic error correction

Dimming system :0-100% linear adjustment

Focusing system: Linear adjustment from 4 meters to 50 meters

Atomization system :1 independent atomization effect, with soft and natural light spots

Zoom Angle: Beam 2.7 -40°, dyeing 4-40°, pattern 4-40°

High-speed stroboscopic effect: 0-30 times per second. Adjustable stroboscopic effect. Stroboscopic macro function

Color: 8 colors + white light. Half-color functional color

System: Independent CMY+CTO color mixing system.

Fixed patterns: 12 fixed patterns + white light rotating patterns :7 glass patterns, each glass pattern can rotate independently in both forward and reverse directions

Prism system: Standard configuration includes single 6-row prisms and 8-prism prisms. Each prism can independently rotate macro in both forward and reverse directions

Functions: Console reset function, self-propelled mode, master-slave mode

Display mode: LCD display, dual operation mode control of keys and touch

Signal: International standard DMX512. With RDM function, online software upgrade is available and address code can be dialed. Cooling method: Axial fan is adopted for enhanced cooling

Safety device: Equipped with electronic temperature control overheat protection. When the overheat system malfunctions, the electronic temperature control will automatically cut off the power for protection. Appearance material: High-temperature resistant plastic

Working environment :-20 ° C, 40 ° C. Protection grade: IP20

Lamp body size: 38*27*65CM

Outer packaging: 54*45*61CMcm

Inner packaging: cm

Net weight: 23KG

Gross weight: 27kg

Number of boxes packed: 1

The size of the aviation case is 73*50*88CM

Number of boxes packed: 2

Gross weight: 77KG
