Power supply: AC90V-240V 50Hz -60 Hz
Power: 500W
Light bulb: 17R 350W
Color temperature: 6000°K
Service life: 5000 hours (manufacturer rated service life)
Color: one color plate, 13 colors + white light effect, variable continuous rotation color disk can produce color in any direction
Rainbow effect. Best effect prism, a rotating 8 prism, a ladder (can also be customized: 16 prisms, +8 or 24 edges
The mirror can be rotated, and can be rotated in the forward and reverse directions and has a prism positioning function, two magnifying glasses and one atomizing mirror.
Pattern plate: a rotating pattern plate 9 picture + white light A fixed pattern plate 14 picture + white light
Focusing: optics, combined optical lens, zoom 0-3.9 degrees, electronic focus 20 meters.
Strobe and strobe: The fast action strobe can quickly interrupt the beam and achieve 1-10 strobe effects per second. There is also a dimming effect.
Zoom: Electronic linear zoom system.

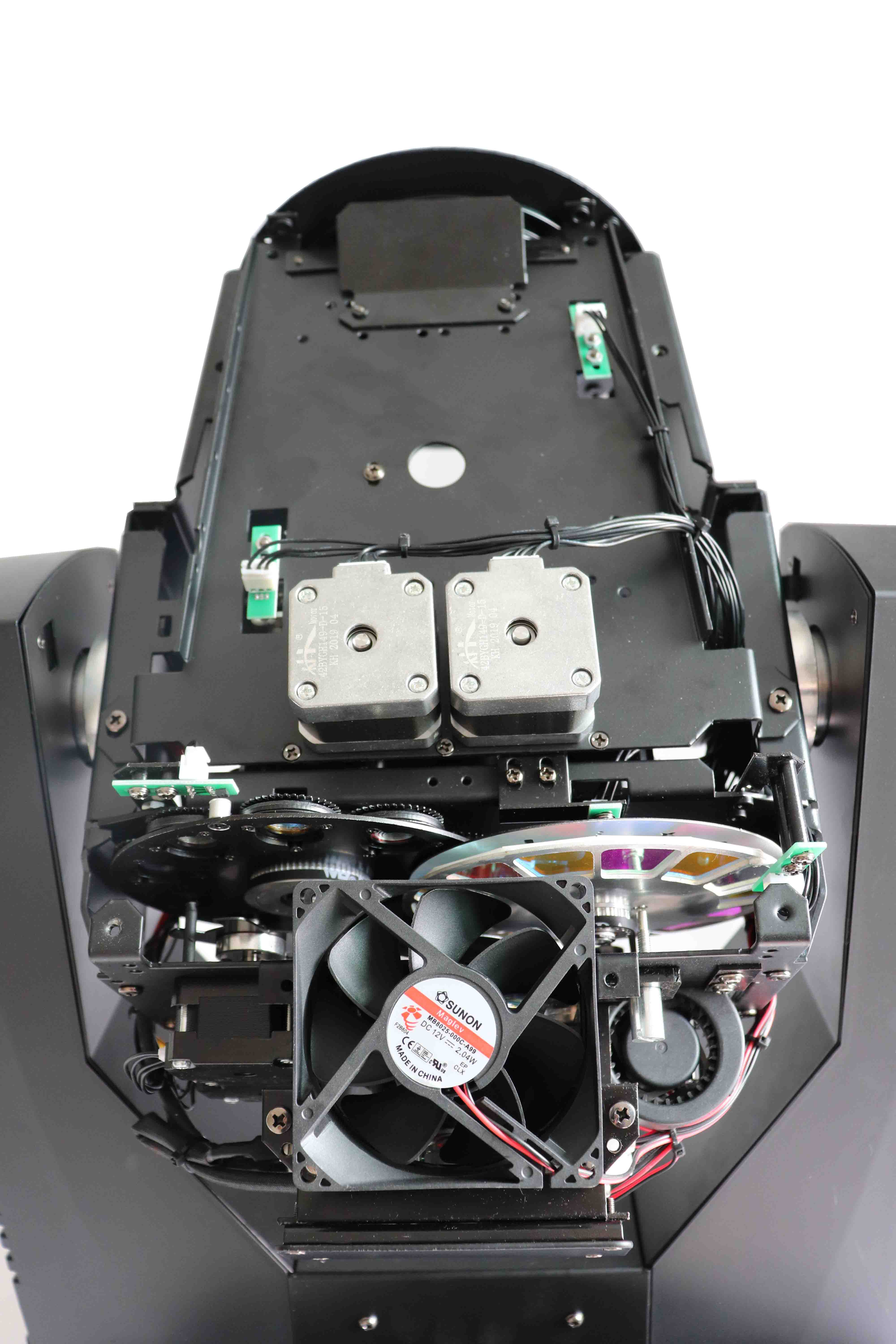

3-phase motor: precision stepper motor controlled by built-in microprocessor
Control: Microprocessor: CPU with high stability and strong anti-interference ability
Digital Control: DMX512
Lamp body: It is formed by the combination of engineering plastic shell, streamlined design and beautiful appearance.
Fan: DC12-24V fan is adopted, and the air cooling speed is natural. Fan cooling and overheat protection
Adjustable strobe frequency
540° horizontal rotation 270° vertical rotation, both with micro-step precision
Standard DMX512 control signal 16CH/24CH two channel modes.

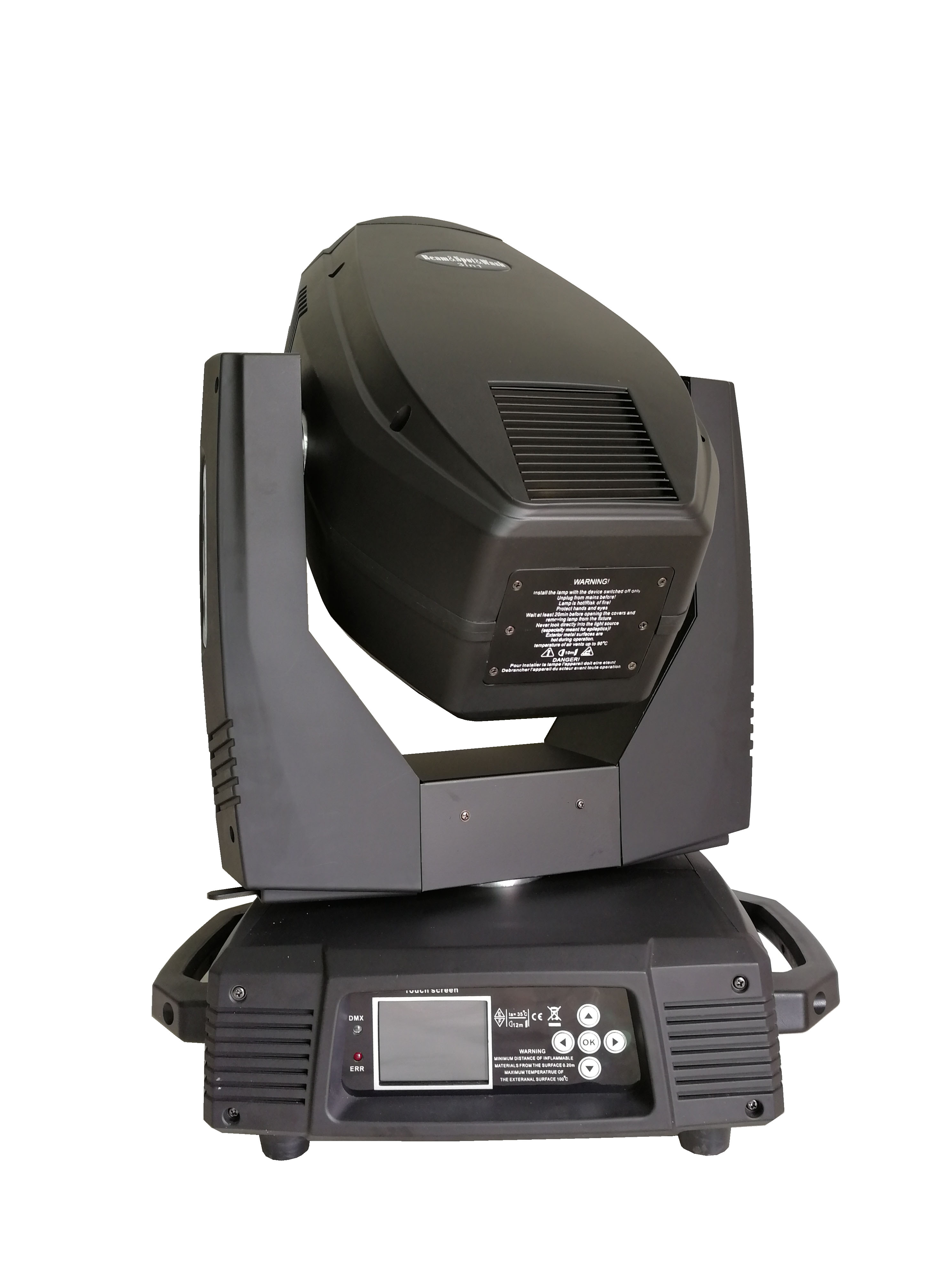

LCD: Touch with a rotating display.
Working environment: indoor, -20 ° C ~ 50 ° C
Shell: high-strength temperature resistant engineering plastic shell and metal powder spray technology, streamlined design.
Lamp body size: 430mm*430mm*63mm
Packing size 440mm*480mm*840mm (air box)
Net weight: 21KG Gross weight: 42KG (one loaded one air box)
