➤: The overall aluminum alloy die-casting molding process, novel appearance, unique design
➤: Standard 1U design
➤: Support RDM function
➤: IP65 waterproof design (optional non-waterproof)

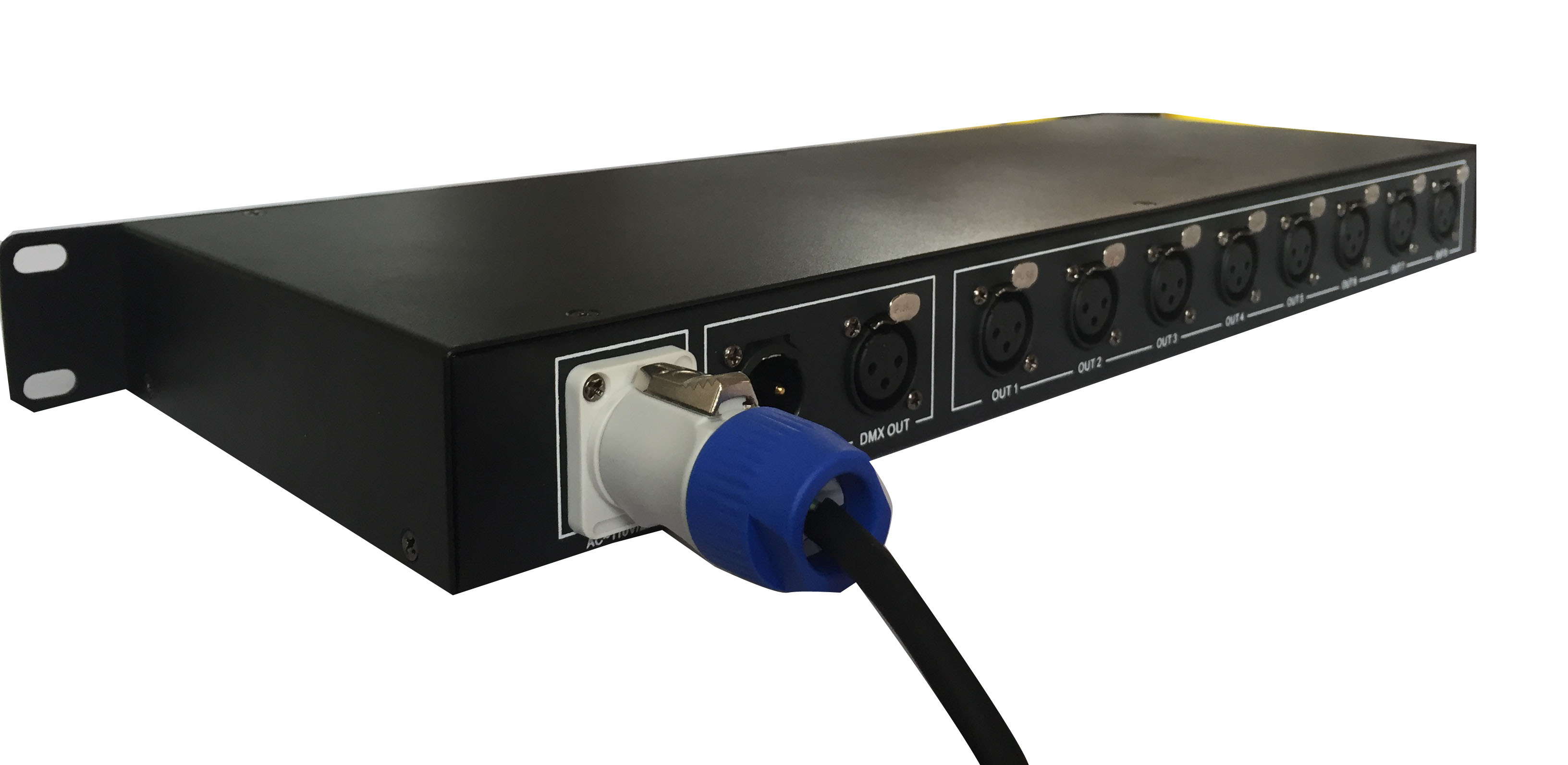

➤: 2 input ports, 8 output ports
➤: 1 in 8 out and 2 in 4 out two modes
➤: Standard DMX512 digital signal
➤: DMX signal shaping and amplification, optimizing DMX signal, extending DMX signal transmission distance
➤: DMX signal distribution function, multi-line DMX interface sharing a set of control system
➤: Using photoelectric high voltage isolation technology, the isolation voltage between each input and output port> 1000V
➤: Use Xishang waterproof XLR head(only for waterproof model)
➤: Meanwell power supply, wide voltage design, 110V~220V
